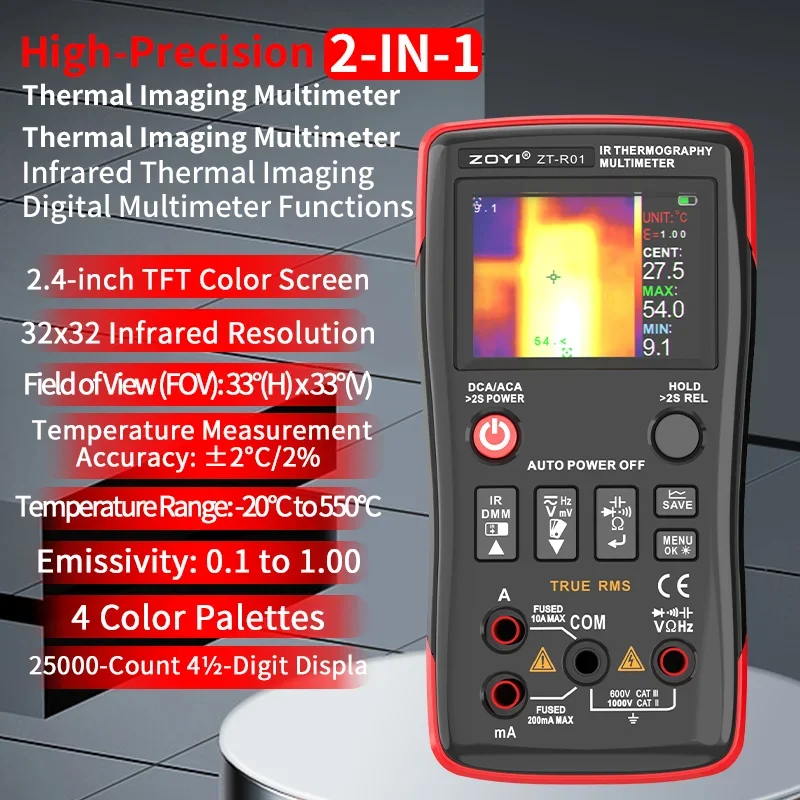

ZOYI ZT-R01 2-in-1 Infrared Thermal Imaging Multimeter, 32×32 IR Resolution, 25000 Counts True RMS

Product Introduction

Core Thermal Imaging Features

• 32×32 infrared thermal resolution with 33°×33° wide field of view, quickly capture heat distribution of circuits, wires, PCB boards and equipment

• 2.4-inch full-color TFT display with 4 optional color palettes, clearly show max/min temperature on screen in real time

• Wide temperature measuring range from -20℃ to 550℃, with accurate reading tolerance of ±2℃ or ±2%

• Adjustable emissivity (0.10~1.00) to match different material surfaces for more precise temperature reading

• Built-in temperature tracking, automatically mark the hottest and coldest spot in the thermal image

Digital Multimeter Functions

• 25000-count 4½-digit high precision True RMS multimeter, stable measurement for AC/DC voltage, AC/DC current, resistance, continuity, diode and frequency

• Safe CAT III 1000V / CAT II 600V overvoltage protection, dual fused current jacks to avoid overload damage

• Practical functions: data hold, relative value (REL), data save, auto power off after idle time

Other Advantages

• Compact portable body, ergonomic grip for long-time handheld use

• One-button switch between IR thermal imaging mode and DMM multimeter mode, simple operation

• Perfect for household circuit inspection, industrial equipment maintenance, automotive wiring check, electronic component overheat troubleshooting, heating pipe leakage detection and more

Packing List
